DIY Plans to Build a Trinity Cabinet

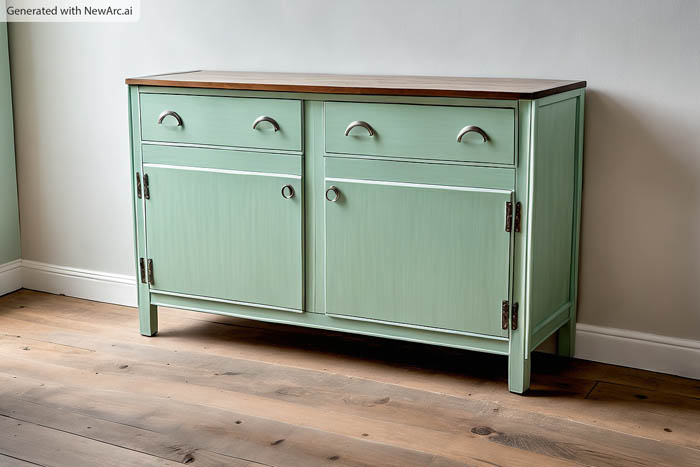

This cabinet though simplistic in design, is full of style! The DIY plans to build a Trinity Cabinet feature two drawers on drawer slides with two hinged doors. The center dividers are wide and would look beautiful with a decorative wood scroll piece glued to the front before finishing. The cabinet can be stained or painted to coordinate with any decor, and can be completed in a weekend!

DIY Plans to Build a Trinity Cabinet_Copy

Materials:

  • 1-1/4″ pocket hole screws
  • 2-1/2″ pocket hole screws
  • 1-1/4″ brad nails
  • Edge banding, optional
  • 2 sets of 16″ Drawer slides
  • Cabinet pulls
  • Wood glue
  • Sandpaper (100, 150, 220 grits)
  • Finishing supplies (primer & paint, or stain, sealer)

Lumber:

  • 2 – 1×2 at 6′
  • 1 – 1×3 at 6′
  • 2 – 2×2 at 6′
  • 2 – 4′ x 8′ sheets of 3/4″ plywood

Cut List:

  • 4 – 2×2 at 29-1/4″ – Legs
  • 2 – 1×2 at 15″ – Side Framing
  • 2 – 2×2 at 15″ – Side Framing
  • 2 – 3/4″ plywood at 15″ x 23-1/4″ – Side Panels
  • 2 – 1×2 at 45″ – Front & Back Stretchers
  • 2 – 2×2 at 45″ – Front & Back Stretchers
  • 1 – 3/4″ plywood at 23-1/4″ x 45″ – Back Panel
  • 2 – 1×3 at 21-1/4″ – Front Dividers
  • 1 – 1×3 at 23-1/4″ – Front Divider
  • 1 – 3/4″ plywood at 15″ x 45″ – Bottom
  • 1 – 3/4″ plywood at 15-3/4″ x 45″ – Shelf
  • 2 – 1×2 at 15-3/4″ – Drawer Slide Supports
  • 1 – 3/4″ plywood at 18″ x 48″ – Top
  • 2 – 3/4″ plywood at 14-1/2″ x 18-3/4″ – Drawer Box Bottoms
  • 8 – 3/4″ plywood at 4″ x 14-1/2″ – Drawer Box Sides
  • 8 – 3/4″ plywood at 4″ x 20-1/4″ – Drawer Box Front & Back
  • 2 – 3/4″ plywood at 5-1/2″ x 21″ – Drawer Front
  • 2 – 3/4″ plywood at 14-3/4″ x 21″ – Doors

DIY Plans to Build a Trinity Cabinet

Click on the drawings for a larger view!

Step One

Edge banding will be applied to the exposed edges of the plywood prior to assembly.

Cut the pieces for the legs, side framing, and side panels. With the pocket hole jig set for 1-1/2″ material, drill pocket holes in each end of the 2×2 framing pieces. Secure the 2×2 framing pieces to the legs using glue and 2-1/2″ pocket hole screws.

Set the pocket hole jig for 3/4″ material and drill pocket holes in each end of the 1×2 framing as well as all four edges of the panels. Secure the 1×2 framing pieces to the legs using glue and 1-1/4″ pocket hole screws. Insert the panel into the framing then secure using glue and 1-1/4″ pocket hole screws. The back face of the panel will be flush with the back face of the framing.

DIY Plans to Build a Trinity Cabinet_Sides

Step Two

Cut the pieces for the back stretchers, the front stretchers, and the back panel. Set the pocket hole jig for 1-1/2″ material and drill pocket holes in each end of the 2×2 framing pieces. Secure one of the framing pieces to the legs using glue and 2-1/2″ pocket hole screws.

Set the pocket hole jig for 3/4″ material and drill pocket holes in each end of the 1×2 framing as well as all four edges of the panel. Secure the 1×2 framing pieces to the legs using glue and 1-1/4″ pocket hole screws. Insert the panel into the framing then secure using glue and 1-1/4″ pocket hole screws. The back face of the panel will be flush with the back face of the framing.

DIY Plans to Build a Trinity Cabinet_Back

Step Three

Secure the 2×2 front stretcher to the legs using glue and 2-1/2″ pocket hole screws. Secure the 1×2 front stretcher to the legs using glue and 1-1/4″ pocket hole screws.

DIY Plans to Build a Trinity Cabinet_Front Stretchers

Step Four

Cut the pieces for the front dividers and drill pocket holes in each end. Secure the longer divider to the upper and lower front stretchers using glue and 1-1/4″ pocket hole screws. The outside face of the divider will be flush with the outside face of the stretchers.

Secure the shorter dividers to the legs and center front divider using glue and 1-1/4″ pocket hole screws.

DIY Plans to Build a Trinity Cabinet_Front Dividers

Step Five

Cut the piece for the bottom and drill pocket holes in all four edges. Secure the bottom to the lower 2×2 stretchers using glue and 1-1/4″ pocket hole screws. The top face of the bottom will be flush with the top face of the stretchers.

DIY Plans to Build a Trinity Cabinet_Bottom

Step Six

Cut the piece for the shelf and drill pocket holes in all four edges. Secure the shelf to the front dividers, the sides, and the back using glue and 1-1/4″ pocket hole screws.

DIY Plans to Build a Trinity Cabinet_Shelf

Step Seven

Cut the pieces for the drawer slide spacers and drill pocket holes in each end. Secure the spacers to the center front divider and back using glue and 1-1/4″ pocket hole screws. The face with the pocket holes will be flush with the outside edge of the center front divider.

DIY Plans to Build a Trinity Cabinet_Drawer Slide Spacer

Step Eight

Cut the piece for the top. Secure to the upper stretchers and legs using glue and 1-1/4″ brad nails.

DIY Plans to Build a Trinity Cabinet_Top

Step Nine

Cut the pieces for the drawer boxes. Drill pocket holes in all four edges of the bottom as well as each end of the sides. Assemble the drawer boxes as shown using glue and 1-1/4” pocket hole screws. Install the drawer slides according to the manufacturer’s installation instructions, locating them ¾” back from the front edge of the sides. For an easy tutorial, click here. Make any necessary adjustments.

DIY Plans to Build a Trinity Cabinet_Drawer BS

DIY Plans to Build a Trinity Cabinet_Drawer FB

Step Ten

Cut the pieces for the drawer fronts. Mark the position for the drawer pulls and drill the holes. Shim the drawer front in the opening – there will be a 1/8” gap around all sides – then drive screws through the holes for the drawer pulls into the drawer box. Open the drawer, and secure the drawer front using countersunk 1-1/4” screws from the inside. Remove the screws from the holes for the drawer pull then finish drilling the holes. Install the drawer pull. For an easy tutorial on installing drawer fronts, click here.

DIY Plans to Build a Trinity Cabinet_Drawer Fronts

Step Eleven

Cut the pieces for the doors. There will be a 1/8″ gap around all sides of the doors in the openings. Install the hinges on the doors, then install the doors in the openings. Install magnetic catches to keep the doors closed, if desired.

DIY Plans to Build a Trinity Cabinet_Doors

Finish as desired.

This is a great cabinet for any room – the entryway, the dining room, or as a console table behind a sofa. The cabinet would look really fabulous with a large stenciled pattern on the doors and drawer fronts. Have any questions about the DIY plans to build a Trinity Cabinet? Leave a comment below!
