Free Plans to Build a 19th Century American Wardrobe

No closets? No problem! This large and roomy wardrobe will satisfy all storage needs with a simple and stately attractiveness! This particular plan features a closet rod inside the cabinet and two large drawers. Shelving can be substituted for the closet rod to make a fantastic media center!



Free Plans to Build a 19th Century American Wardrobe

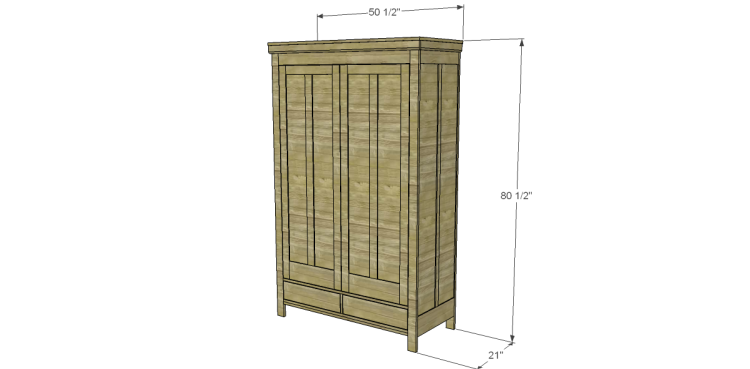

19th C. American Wardrobe

Materials:

  • 1-1/4″ pocket hole screws
  • 1-1/4″ brad nails
  • Edge banding for plywood, optional
  • Closet rod for the cabinet
  • 2 sets of 18″ drawer slides
  • Cabinet pulls
  • 2 magnetic catches
  • Finishing supplies

Lumber:

  • 3 – 1×2 at 8′
  • 8 – 1×3 at 8′
  • 2 – 1×6 at 8′
  • One sheet of 1/2″ plywood
  • One sheet of 3/4″ plywood

Cut List:

  • 4 – 1×3 at 79-3/4″ – Side Frame
  • 4 – 1×6 at 19-1/2″ – Side Frame
  • 2 – 1×2 at 64-3/4″ – Side Frame
  • 4 – 1/2″ plywood at 9″ x 64-3/4″ – Side Panels
  • 1 – 3/4″ plywood at 44″ x 75-3/4″ – Back
  • 1 – 1×2 at 44″ – Lower Stretcher
  • 1 – 1×6 at 44″ – Upper Stretcher
  • 1 – 3/4″ plywood at 19-1/2″ x 47-1/2″ – Bottom
  • 2 – 1×2 at 19-1/2″ – Slide Supports
  • 1 – 3/4″ plywood at 5-3/4″ x 20-1/4″ – Drawer Divider
  • 1 – 3/4″ plywood at 20-1/4″ x 47-1/2″ – Shelf
  • 1 – 3/4″ plywood at 21-3/4″ x 50-1/2″ – Top
  • 4 – 1×3 at 62″ – Door Frames
  • 2 – 1×3 at 54″ – Door Frames
  • 2 – 1×3 at 16-13/16″ – Door Frames
  • 2 – 1×6 at 16-13/16″ – Door Frames
  • 4 – 1/2″ plywood at 7-1/8″ x 54″ – Door Panels
  • 2 – 3/4″ plywood at 18″ x 19-1/8″ – Drawer Bottoms
  • 4 – 3/4″ plywood at 5-1/2″ x 18″ – Drawer Sides
  • 2 – 3/4″ plywood at 20-5/8″ – Drawer Backs
  • 2 – 3/4″ plywood at 21-3/8″ Drawer Fronts
  • Trim for sides and front of top (length depends on type of trim chosen)



Click on the drawings to enlarge them!

1. Cut the pieces for the side frames. Drill pocket holes in each end of the shorter pieces, as well as the plywood panels as shown. The 1x3s for the sides of the frames are positioned on end and the other frame pieces will be flush with the outside edge. The panels will be flush with the inside face of the shorter frame pieces. Assemble using glue and 1-1/4″ pocket hole screws.

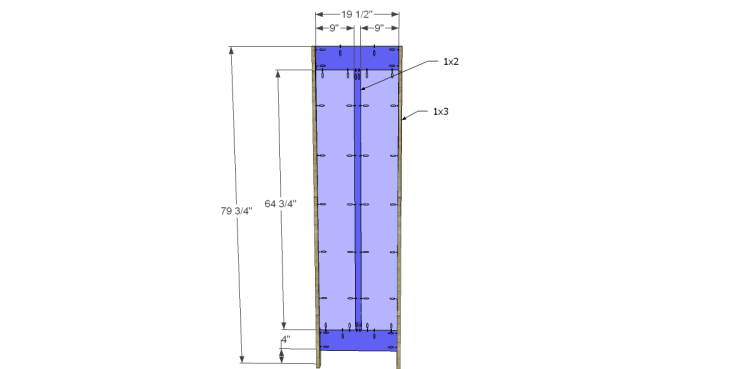

 Free Plans to Build a 19th Century American Wardrobe_Side

2. Cut the piece for the back and drill pocket holes as shown. Secure to the side frames using glue and 1-1/4″ pocket hole screws.

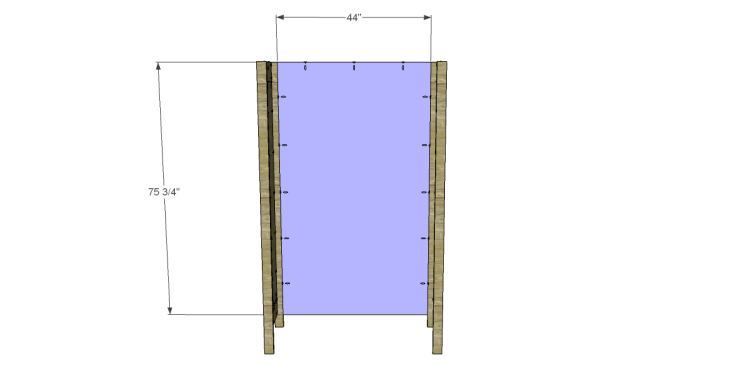

 Free Plans to Build a 19th Century American Wardrobe_Back

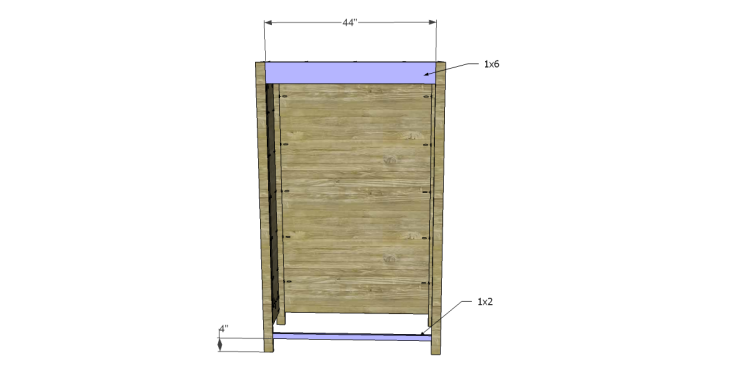

3. Cut the pieces for the stretchers and drill pocket holes in each end. Also drill pocket holes in one long edge of the upper stretcher to attach the top. Attach to the side frames as shown using glue and 1-1/4″pocket hole screws.

 Free Plans to Build a 19th Century American Wardrobe_Front Stretchers

4. Cut the piece for the bottom and drill pocket holes as shown. Attach to the cabinet using glue and 1-1/4″ pocket hole screws. The top of the shelf will be flush with the top of the lower stretcher.

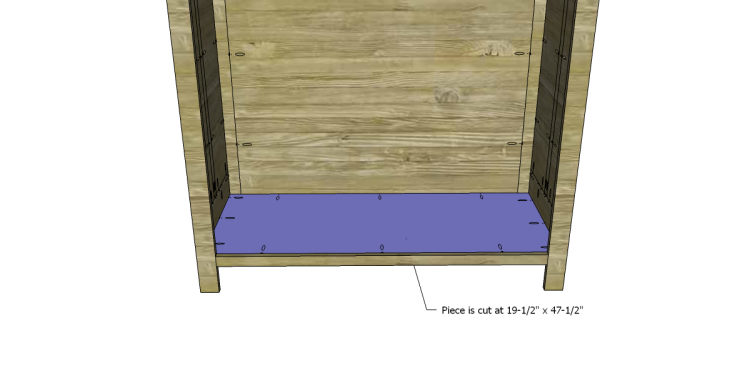

 Free Plans to Build a 19th Century American Wardrobe_Bottom

5. Cut the pieces for the slide supports and drill pocket holes in each end. Attach to the legs of the side frame using glue and 1-1/4″ pocket hole screws. The inside face of the supports will be flush with the inside edge of the legs.

Cut the piece for the drawer divider and drill pocket holes in one long edge. Position as shown and secure using glue and 1-1/4″ pocket hole screws.

 Free Plans to Build a 19th Century American Wardrobe_Slide Support

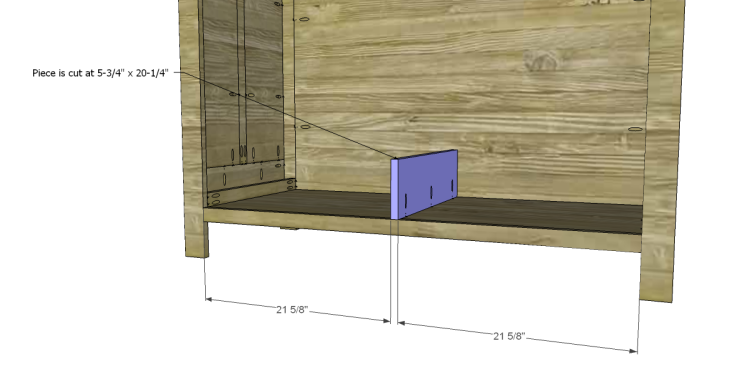

Free Plans to Build a 19th Century American Wardrobe_Drawer Divider

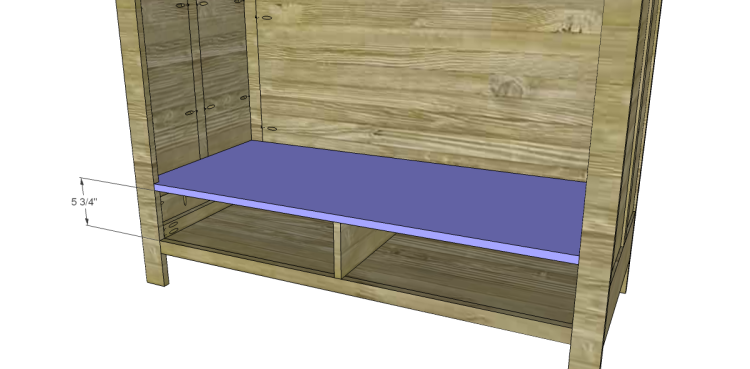

6. Cut the piece for the shelf. Cut the notches and drill pocket holes as shown. Attach to the cabinet using glue and 1-1/4″ pocket hole screws. Secure the shelf to the drawer divider using 1-1/4″ brad nails.

Free Plans to Build a 19th Century American Wardrobe_Shelf 1

 Free Plans to Build a 19th Century American Wardrobe_Shelf 2

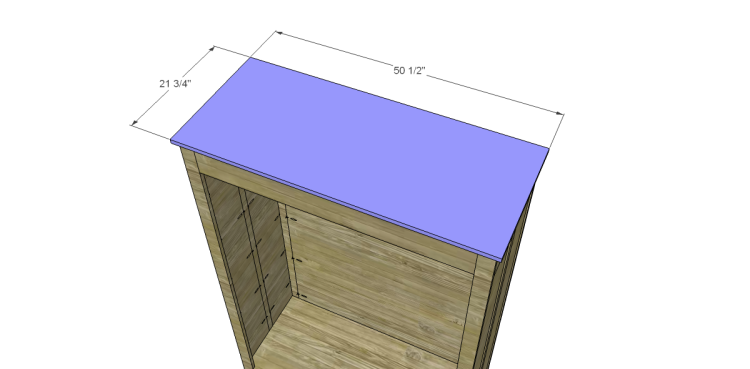

7. Cut the piece for the top. Secure using glue and 1-1/4″ pocket hole screws through the holes in the side frames, back, and front apron. The top will overlap the front and sides by 3/4″.

Cut the pieces for the trim. Install the side trim first, then install the front trim.

 Free Plans to Build a 19th Century American Wardrobe_Top

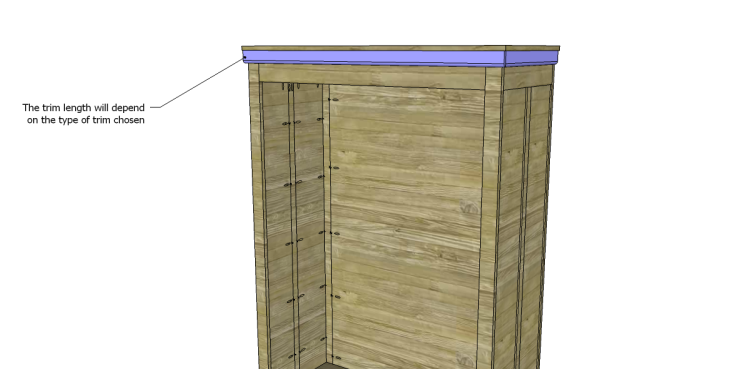

Free Plans to Build a 19th Century American Wardrobe_Trim

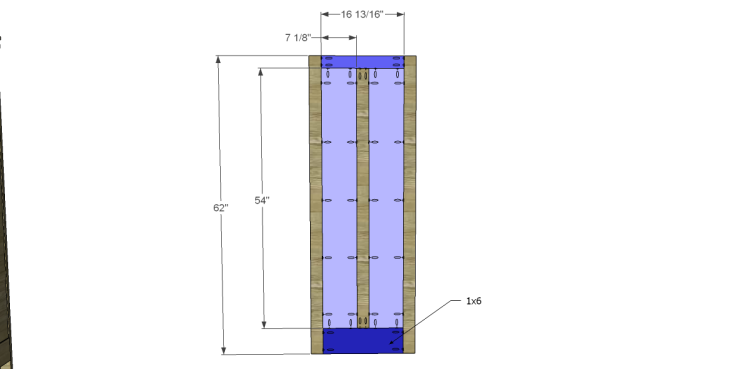

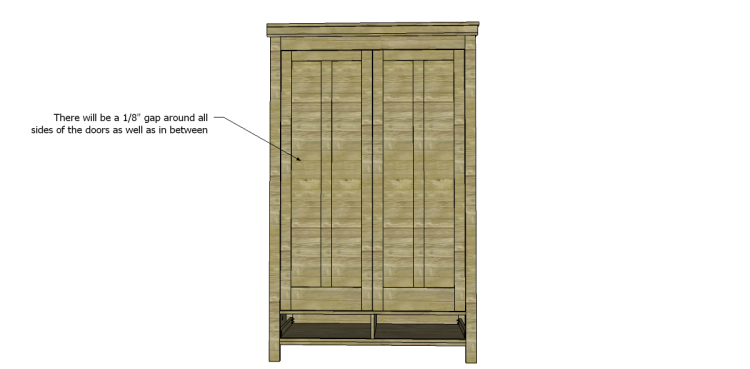

8. Cut the pieces for the door frames and panels. Drill pocket holes in each end of the shorter pieces, as well as the plywood panels as shown. Assemble using glue and 1-1/4″ pocket hole screws.

 Free Plans to Build a 19th Century American Wardrobe_Doors 1

Free Plans to Build a 19th Century American Wardrobe_Doors 2

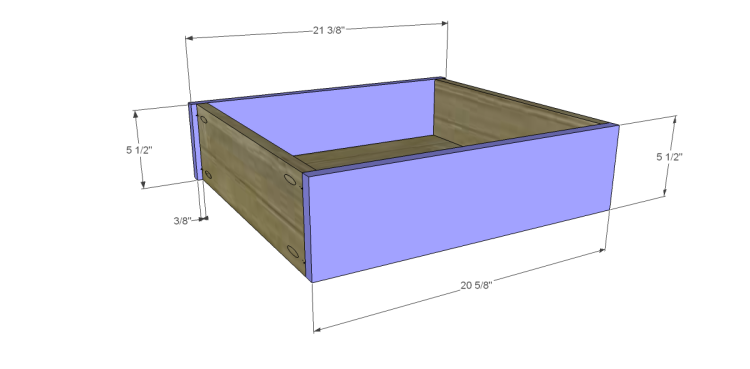

9. Cut the pieces for the drawers. Drill pocket holes in each end of the side pieces as well as all four edges of the bottom. Assemble as shown using glue and 1-1/4″ pocket hole screws. The fronts will overlap the drawer box by 3/8″ on each side.

Install the drawer slides according to the manufacturer’s instructions. For an easy tutorial, click here. Make any necessary adjustments.

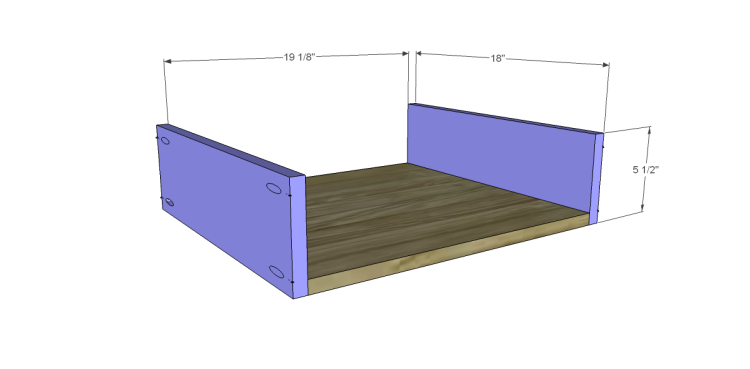

Free Plans to Build a 19th Century American Wardrobe_Drawer BS

Free Plans to Build a 19th Century American Wardrobe_Drawer FB

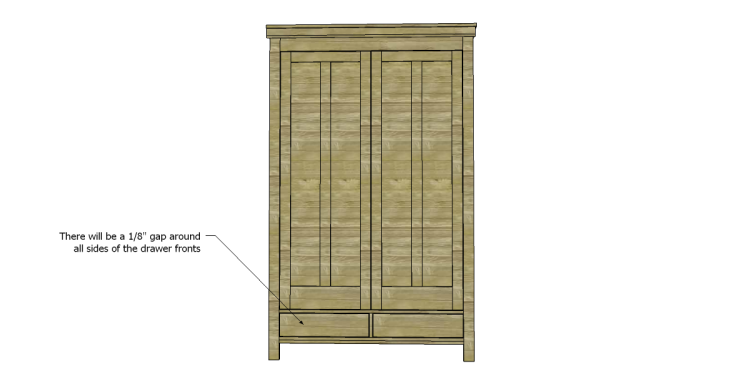

Free Plans to Build a 19th Century American Wardrobe_Drawer Fronts

Finish as desired and install the cabinet pulls.

Have a request for a plan? Contact me at cher {at} designsbystudioc {dot} com or designsbystudioc {at} gmail {dot} com. I would love to create a plan for you!

Until next time,

Happy Creating!
