Free Plans to Build My Awesome Tool Cabinet

– Posted in: Plans, Storage

Free Plans to Build My Awesome Tool Cabinet

I’ve been meaning to organize my tools in the laundry room for quite some time…  In all honesty, I just didn’t want to tackle that mess! Buying a new washer and dryer forced me to restore order to my tool collection!

Free Plans to Build My Awesome Tool Cabinet

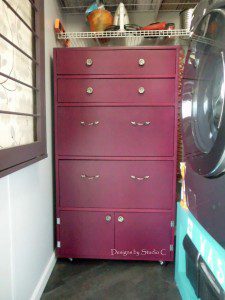

This is my girly answer to the Craftsman Tool chest! I created this chest to organize my stuff and painted it a wild shade of fuschia (Berry Brown Valspar – Satin) because – well – because I can! It features two narrow drawers, two deeper drawers, and a cubby with doors in addition to casters which will make it easier to move it around as needed. The cabinet can be customized to fit your needs – taller, deeper, etc.!

Free Plans to Build My Awesome Tool Cabinet 2

Materials:

  • 1-1/4″ pocket hole screws
  • Four sets of 14″ drawer slides
  • Six cabinet knobs or pulls
  • Two sets of hinges
  • Four 4″ casters
  • Edge banding for exposed edges of plywood, if desired
  • Finishing Supplies

Lumber:

Cut List:

  • 2 – 3/4″ plywood at 16″ x 51″ – Sides
  • 1 – 3/4″ plywood at 30-1/2″ x 51″ – Back
  • 2 – 3/4″ plywood at 16″ x 32″ – Top & Bottom
  • 4 – 1×2 at 30-1/2″ – Stretchers
  • 4 – 3/4″ plywood at 13-1/4″ x 28″ – Drawer Bottoms
  • 4 – 3/4″ plywood at 4-1/2″ x 13-1/4″ – Small Drawer Sides
  • 2 – 3/4″ plywood at 4-1/2″ x 29-1/2″ – Small Drawer Backs
  • 2 – 3/4″ plywood at 5-1/2″ x 30-1/4″ – Small Drawer Fronts
  • 4 – 3/4″ plywood at 11″ x 13-1/4″ – Large Drawer Sides
  • 2 – 3/4″ plywood at 11″ x 29-1/2″ – Large Drawer Backs
  • 2 – 3/4″ plywood at 12″ x 30-1/4″ – Large Drawer Fronts
  • 2 – 3/4″ plywood at 11-3/4″ x 15-1/16″ – Doors



Click on the drawings to enlarge them!

1. Cut the pieces for the sides and drill pocket holes in each of the shorter ends. Cut the piece for the back and drill pocket holes in all four edges. Attach the sides to the back using glue and 1-1/4″ pocket hole screws.

 Free Plans to Build My Awesome Tool Cabinet 3

2. Cut the pieces for the top and bottom. Attach to the sides and back using glue and 1-1/4″ pocket hole screws.

 Free Plans to Build My Awesome Tool Cabinet 4

3. Cut the pieces for the stretchers and drill pocket holes at each end. Attach to the sides at the spacing shown using glue and 1-1/4″ pocket hole screws.

 Free Plans to Build My Awesome Tool Cabinet 5

4. Cut the pieces for the drawers. Drill pocket holes in all four edges of the bottoms as well as each end of the side pieces. Attach the sides to the bottoms using glue and 1-1/4″ pocket hole screws. Attach the front and the back in the same manner. Keep in mind, the fronts will be 3/8″ longer than the drawer boxes on each side.

Free Plans to Build My Awesome Tool Cabinet 6

Free Plans to Build My Awesome Tool Cabinet 7

Install the drawer slides according to the manufacturer’s instructions. They will be set back 3/4″ from the front edge of the cabinet. For an easy tutorial, click here. Make any necessary adjustments.



5. Cut the pieces for the doors. Install the hinges according to the manufacturer’s instructions and make any necessary adjustments. Install the cabinet hardware.

Free Plans to Build My Awesome Tool Cabinet 8

If you’ve built anything using my plans, why not let me feature your hard work on DbSC? Send me an email at designsbystudioc [at] gmail [dot] com!

Until next time,

Happy Creating!!

#DIY #woodworking #build
