An Easy to Build Space-Saving Bench

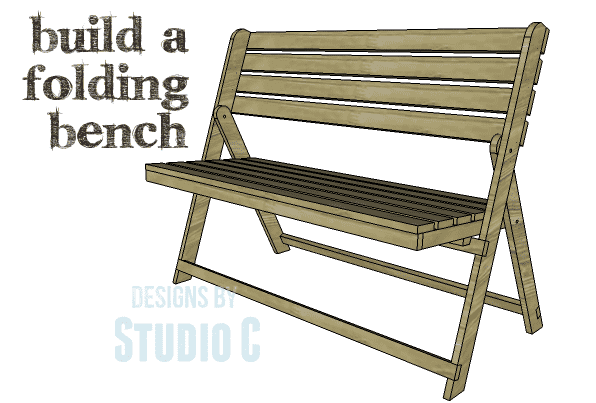

DIY Plans to Build a Folding Bench

For sure, this plan is going on my to-build list… The DIY plans to build a Folding Bench are super-easy to construct, and feature a slatted seat and back. The bench is reminiscent of old style folding chairs, and is very easy to build!

DIY Plans to Build a Folding Bench_Copy

DIY Plans to Build a Folding Bench_Copy 2

Materials:

  • 1-1/4″ pocket hole screws
  • 1-1/2″ screws
  • 4 – 1-1/2″ (or 40 mm) connector bolts with connecting nuts
  • Wood glue
  • Sandpaper (100, 150, 220 grits)
  • Finishing supplies (primer & paint, or stain, sealer)

Lumber:

  • 6 – 1×2 at 8′
  • 7 – 1×3 at 8′

Cut List:

  • 2 – 1×3 at 38-3/8″ – Front Legs
  • 2 – 1×2 at 48″ – Front Stretchers
  • 4 – 1×3 at 48″ – Back Slats
  • 2 – 1×3 at 27-1/2″ – Back Legs
  • 1 – 1×2 at 46-1/2″ – Back Stretcher
  • 5 – 1×2 at 16-1/2″ – Seat Frame
  • 3 – 1×2 at 45″ – Seat Frame & Seat Stop
  • 6 – 1×3 at 45″ – Seat Slats

DIY Plans to Build a Folding Bench

Click on the drawings for a larger view!

Step One

Cut the pieces for the front legs. Cut a 25° angle in the bottom of each leg. Cut a slight arc in the top front edge of each piece, and cut the notches using a jigsaw. Drill 3/8″ holes in the positions shown in the drawing.

DIY Plans to Build a Folding Bench_Front Legs

Step Two

Cut the pieces for the front stretchers. Secure the stretchers inside the notches using glue and countersunk 1-1/2″ screws.

DIY Plans to Build a Folding Bench_Front Stretchers

Step Three

Cut the pieces for the back slats. Secure the slats to the back edge of the legs using countersunk 1-1/2″ screws. The slats are spaced approximately 3/4″ apart, and the top slat is flush with the top of the legs.

DIY Plans to Build a Folding Bench_Back Slats

Step Four

Cut the pieces for the back legs. Round over the top edge of each leg. The radius is 1-1/4″. Cut a 25° angle in the bottom edge of each leg. Cut the notch in the leg using a jigsaw. Drill 3/8″ holes in the positions shown in the drawing.

DIY Plans to Build a Folding Bench_Back Legs 1

Step Five

Cut the piece for the back stretcher and secure it in the notches using glue and countersunk 1-1/2″ screws.

DIY Plans to Build a Folding Bench_Back Legs 2

Step Six

Fasten the back leg assembly to the inside of the front legs using 1-1/2″ connector bolts. The bolts will be tightened with an Allen wrench on each side – not too tight, though!

DIY Plans to Build a Folding Bench_Back Legs 3

Step Seven

Cut the pieces for the seat frame. Drill a 3/8″ hole in the outer side frame pieces as shown in the drawings.

With the pocket hole jig set for 3/4″ material, drill pocket holes in each end of the shorter frame pieces. The pocket holes in the outer side frame pieces will straddle the hole. Assemble the frame using glue and 1-1/4″ pocket hole screws.

DIY Plans to Build a Folding Bench_Seat Frame Side

DIY Plans to Build a Folding Bench_Seat 1

Step Eight

Cut the pieces for the seat slats. Secure the slats to the frame using glue and countersunk 1-1/2″ screws. The slats will be spaced approximately 5/8″ apart.

DIY Plans to Build a Folding Bench_Seat 2

Step Nine

Cut the piece for the seat stop and cut a 25° bevel along one long edge. This piece is secured to the bottom of the seat frame and the beveled edge will rest against the upper front stretcher to keep the bench from sliding apart.

Secure the stop to the bottom of the seat frame using glue and countersunk 1-1/2″ screws with the bevel facing toward the back and also facing up (the longer edge of the bevel rests on the frame).

DIY Plans to Build a Folding Bench_Seat Stop 1

DIY Plans to Build a Folding Bench_Seat Stop 2

Step Ten

Fasten the seat to the back legs using a 1-1/2″ connector bolt.

DIY Plans to Build a Folding Bench_Seat 3

Finish as desired.
