New Plans for a Beautiful Dining Chair Bench

DIY Furniture Plans to Build a Long Chair Bench

The very first dining chair bench I designed plans for and built was as a gift for my mom. She still loves it (and still won’t let anyone sit on it!) and I am super-proud of it! The DIY furniture plans to build a Long Chair Bench are basically the same as the original chair bench but in this case, all of the chairs match. This is the perfect plan for those new to furniture building – it is really super-easy!

DIY Furniture Plans to Build a Long Chair Bench - Copy

Materials:

  • 1-1/4″ pocket hole screws
  • 2″ brad nails
  • 4 – 2″ wide mending plates
  • Edge banding for the seat, optional
  • Wood glue
  • Sandpaper (100, 150, 220 grits)
  • Finishing supplies (primer & paint, or stain, sealer)

Tools Needed:

  • Circular saw or miter saw
  • Jigsaw or bandsaw
  • Drill
  • Pocket hole jig
  • Pneumatic brad nailer with compressor
  • Sander

Lumber:

  • 4 – 1×3 at 8′
  • 1 – 1×6 at 4′
  • 3 – 2×2 at 6′
  • 3 – 2×4 at 8′
  • 1 – 4′ x 8′ sheet of 3/4″ plywood

Cut List:

  • 6 – 2×4 at 42-3/4″ – Back Legs
  • 3 – 1×6 at 15″ – Upper Back
  • 12 – 1×3 at 15″ – Back Pieces and Stretchers
  • 6 – 2×2 at 17-1/4″ – Front Legs
  • 6 – 1×3 at 15″ – Side Stretchers
  • 3 – 1×3 at 15″ –  Seat Supports
  • 4 – 1×3 at 3″ – Spacers
  • 3 – 3/4″ plywood at 18″ x 60″ – Seat

DIY Furniture Plans to Build a Long Chair Bench

Click on the drawings for a larger view!

Notes about the project:

Edge banding, if used, will be applied to the exposed edges of the seat prior to securing it to the seat frames.

When cutting multiple legs for chairs, I draw the dimensions for the legs on one board, then stack the boards securing them together. I used a bandsaw to cut along the lines drawn on the board cutting the legs at the same time.

Step One

Draw the lines for the back legs on the 2×4 as shown in the drawing. Use a jigsaw or bandsaw to cut the legs out. Stack the legs together holding the stack with a clamp, then thoroughly sand.

DIY Furniture Plans to Build a Long Chair Bench - Legs

Step Two

Cut the pieces for the back and the stretchers. With the pocket hole jig set for 3/4″ material, drill pocket holes in each end of each piece. Secure the pieces to the legs as shown using glue and 1-1/4″ pocket hole screws. The front faces of the back pieces will be flush with the front faces of the legs, while the back face of the stretcher will be flush with the front face of the legs. (There should be three stretchers left over for the front.)

DIY Furniture Plans to Build a Long Chair Bench - Back Rest & Stretcher

Step Three

Cut the pieces for the front legs. Secure the remaining stretchers to the legs using glue and 1-1/4″ pocket hole screws. The back face of the stretchers will be flush with the inside faces of the legs.

DIY Furniture Plans to Build a Long Chair Bench - Front Legs & Stretchers

Step Four

Cut the pieces for the side stretchers and drill pocket holes in each end. Secure the stretchers to the front and back legs using glue and 1-1/4″ pocket hole screws. The back face of the stretchers will be flush with the inside faces of the legs.

DIY Furniture Plans to Build a Long Chair Bench - Side Stretchers

Step Five

Cut the pieces for the seat supports and drill pocket holes in each end. Secure the supports to the front and back stretchers using glue and 1-1/4″ pocket hole screws.

DIY Furniture Plans to Build a Long Chair Bench - Seat Support

Step Six

Cut the pieces for the spacers and drill pocket holes in one end only of each piece. One side of the spacers will be secured to the legs using pocket hole screws, and the other side will be secured to the legs using the mending plates and screws.

DIY Furniture Plans to Build a Long Chair Bench - Spacers

Step Seven

Cut the piece for the seat. If using edge banding, apply it to all four edges prior to cutting the notches. Mark the position for the notches and cut them out with a jigsaw.

Position the seat on the seat frames securing in place using glue and 2″ brad nails.

DIY Furniture Plans to Build a Long Chair Bench - Seat 1

DIY Furniture Plans to Build a Long Chair Bench - Seat 2

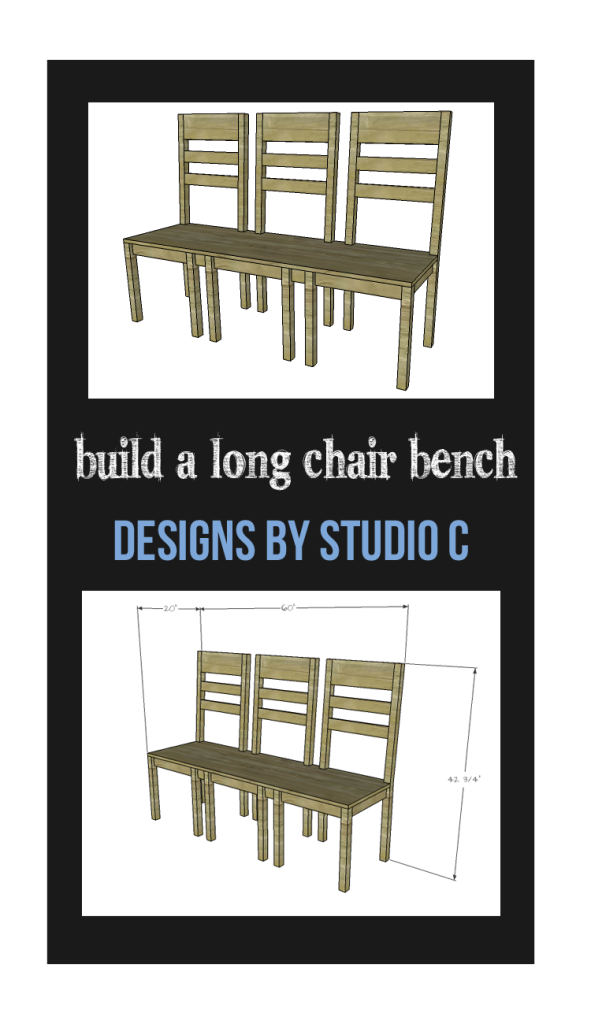

Easy to build chair frames are aligned with a long seat on top for a fabulous Long Chair Bench. This plan is suitable for all skill levels!

Finish the bench as desired.

The seat for this bench can also be cut from planks, and can be stenciled, stained or painted. Wood appliques can also be added to the upper back pieces for a decorative look. Have any questions about the DIY furniture plans to build a Long Chair Bench? Leave a comment below!
